Ironer Belt Lacing: #25 Galvanized or UNIBAR Stainless

Clipper lacing joins the two ends of a belt into a loop. CIC sells two 2″ Flexco clipper lacing styles for flatwork ironer and folder belts. This guide lists what each product page confirms.

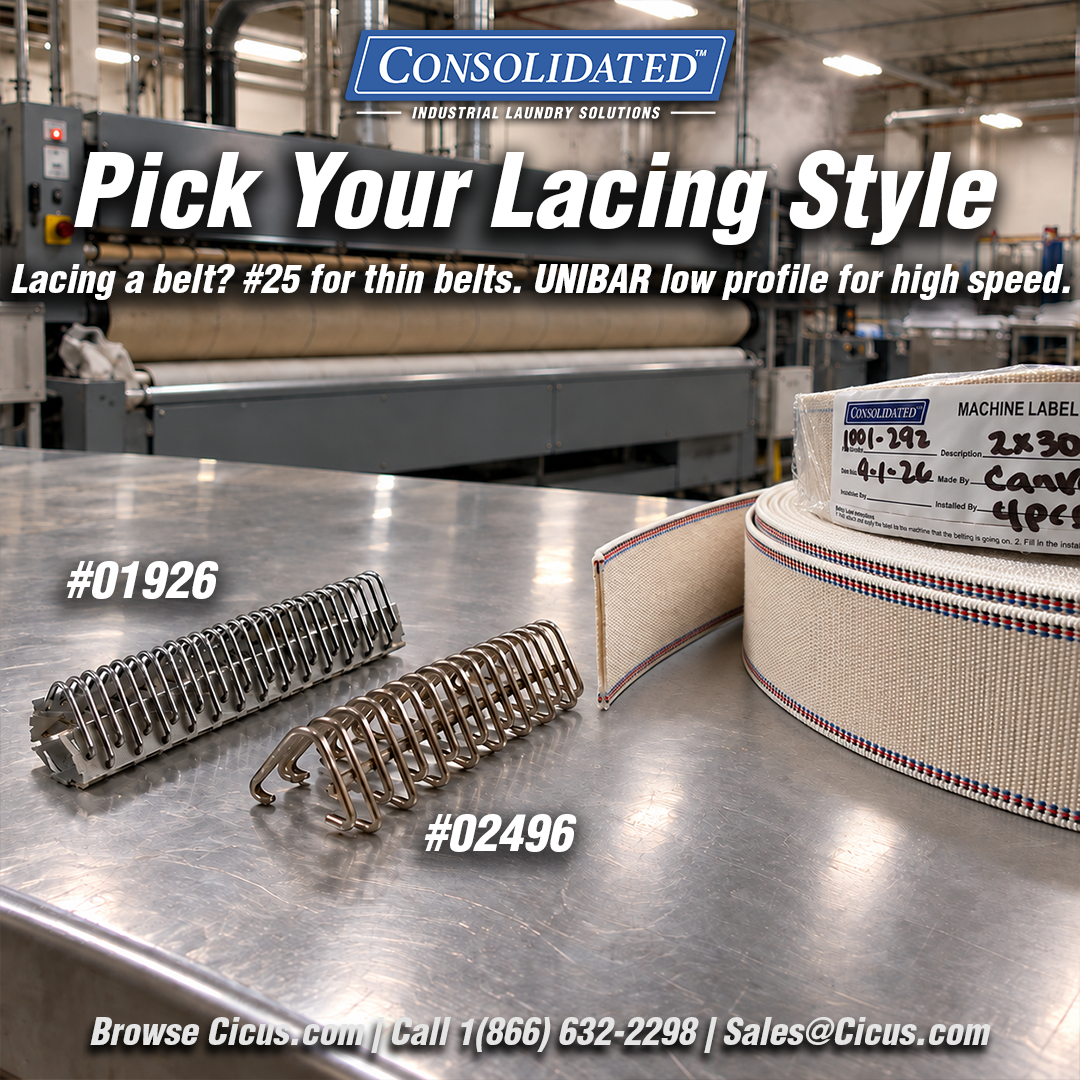

#25 Galvanized, Part 01926

This style is built for thin belts on light- to medium-duty flatwork ironer and folder lines. It uses a Nylosteel pin. The page rates it for belt thickness of 1.2 to 1.6 mm and a minimum pulley diameter of 15/16″. It fits 2″ single-ply belts, including Anti-Static, Stripe Marker, Blueline, Patriot, Natural Rubber, Synthetic Rubber Grip, Polyester, and Poly Vac. See the Blueline family for the striped belt rolls.

Buy Flexco Clipper Lacing, #25 Galvanized 2″ – 01926

UNIBAR Stainless Steel, Part 02496

This style fits high-speed flatwork ironer belts and folder conveyors. UNIBAR uses a continuous connecting bar and makes a low-profile splice. The strips are stainless steel, which the page lists for humid laundry environments. Each box holds 12 pre-cut 2″ strips.

Buy Flexco Clipper Lacing, UNIBAR Stainless Steel 2″ – 02496

How to pick

Measure your belt width, belt thickness, and smallest pulley diameter. The 01926 page gives a thickness range of 1.2 to 1.6 mm. The 02496 page lists no thickness rating, so call 1(866) 632-2298 with your belt thickness before you order UNIBAR.

Also on your list

The 01926 page also lists the CIC Anti-Static Cotton Ironer Belt Roll, 2″ (13-19750). Browse Full Belt Rolls, Belt Lacing, and Lacing Tools & Supplies. Read Ironer Maintenance Essentials for the rest of the line.
