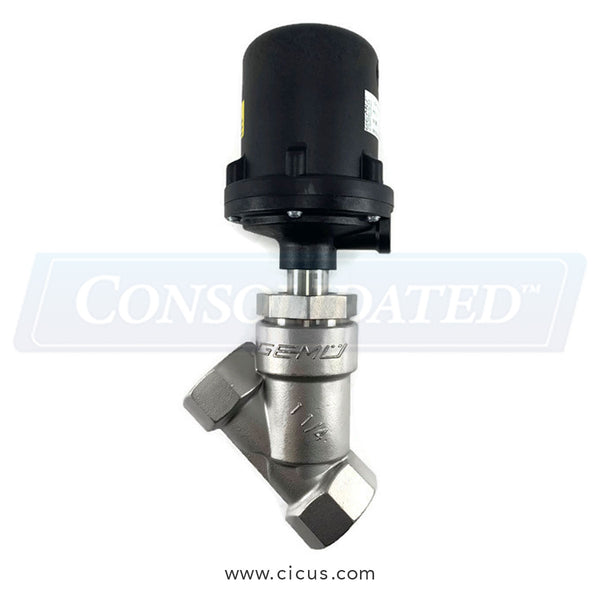

554025D3D37511 – GEMÜ 1″ NPT Stainless Steel Globe Valve, PTFE Disc, Fail Close, Actuator Size 1

The 554025D3D37511 is a GEMÜ 1″ NPT stainless steel globe valve with a PTFE sealing disc and pneumatic actuator, configured Fail Close (normally closed). This valve is designed for controlled shutoff and throttling of steam, water, condensate, and process fluids in industrial laundry utility systems. Typical installation points include steam branch lines feeding flatwork ironers, heat exchangers, chemical injection loops, and condensate recovery systems.

The stainless steel body provides enhanced corrosion resistance compared to bronze in aggressive chemical or high-purity applications. The PTFE disc offers chemical compatibility and tight shutoff performance. The Actuator Size 1 pneumatic operator delivers reliable air-actuated closure upon loss of air supply, protecting downstream equipment.

Maintenance Tip: Confirm fail position during installation by cycling the valve under controlled air loss to verify proper fail-close operation.

Consolidated International Corporation (CIC) supplies precision pneumatic flow-control components engineered for commercial laundry system reliability.
