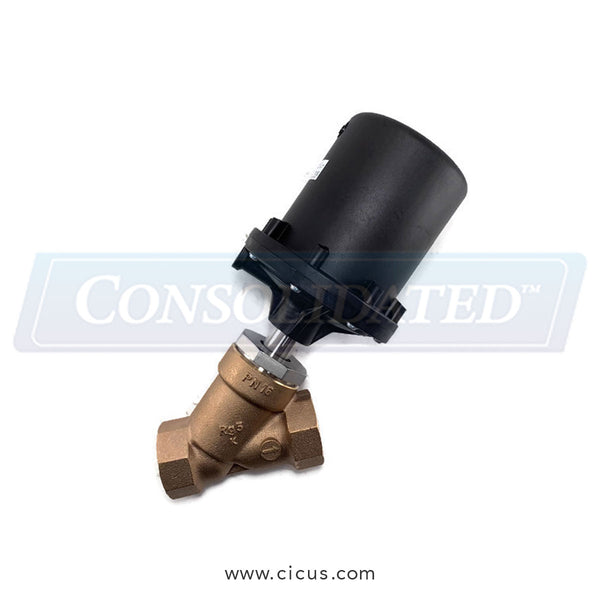

554065D319512 – GEMÜ 554 Angle-Seat Globe Valve, 2.5″ NPT, Bronze, PTFE Seal, Actuator Size 2

The 554065D319512 GEMÜ 554 is a 2.5″ pneumatically actuated angle-seat globe valve with NPT threaded connections, bronze body construction, and PTFE sealing element. This valve is designed for high-flow shutoff and control of steam, water, and compatible process media in industrial piping systems, including steam distribution headers, condensate return lines, and main utility branches within commercial laundry facilities.

The angle-seat geometry provides improved flow capacity and reduced pressure drop compared to straight-pattern globe valves, making it suitable for larger diameter service. Actuator Size 2 indicates a higher thrust configuration within the GEMÜ 554 series, appropriate for larger valve diameters and elevated differential pressures when operated within rated limits.

Maintenance Tip: Verify actuator air supply pressure meets manufacturer specifications to ensure full stroke under load conditions.

CICUS supplies steam-rated pneumatic valve assemblies engineered for durable performance in commercial laundry thermal infrastructure.
