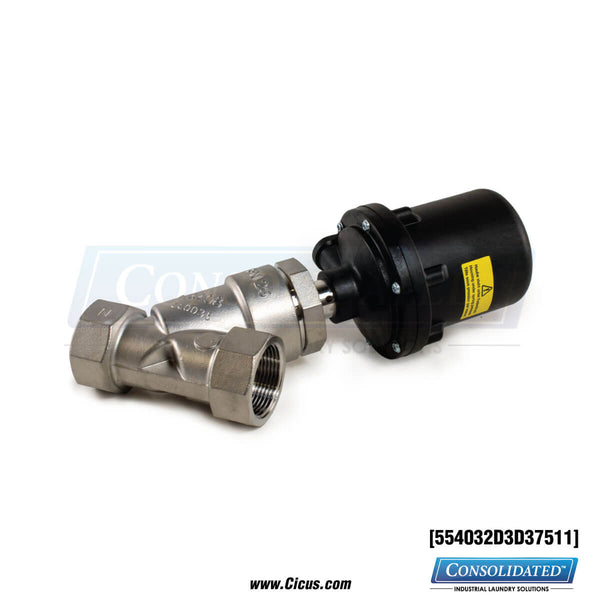

554032D3D7511 – 1.25″ NPT Angle Seat Valve, 2/2-Way, Pneumatic, Normally Closed

The 554032D3D7511 is a GEMÜ 554 series angle seat valve designed for reliable pneumatic flow control in commercial laundry and industrial process systems. Featuring a 1.25-inch NPT connection and 2/2-way, normally closed (N/C) configuration, this valve provides dependable shutoff and fast response in high-cycle applications.

The angle seat design allows for high flow capacity with minimal pressure drop, making it well-suited for steam, water, compressed air, and compatible process media. Pneumatic actuation ensures consistent operation and repeatability, while the normally closed fail-safe design shuts the valve automatically in the event of air loss.

Commonly used in tunnel washers, presses, steam distribution lines, and utility systems, the GEMÜ 554 valve is valued for its durability, serviceability, and long operational life in demanding environments.

Maintenance Tip:
Maintain clean, dry air supply to the actuator and periodically inspect seals and seat components during scheduled shutdowns to ensure consistent closing force and leak-free operation. Trusted by laundry engineers and plant maintenance teams worldwide.

⚙️ Technical Specifications
Spec Detail
Brand GEMÜ
Series 554
SKU 554032D3D7511
Valve Type Angle seat valve
Port Size 1.25″ NPT
Valve Configuration 2/2-way
Normal State Normally closed (N/C)
Actuation Pneumatic (air operated)
Body Material Stainless steel
Typical Media Steam, water, air, compatible fluids
Typical Use Industrial and commercial laundry flow control
