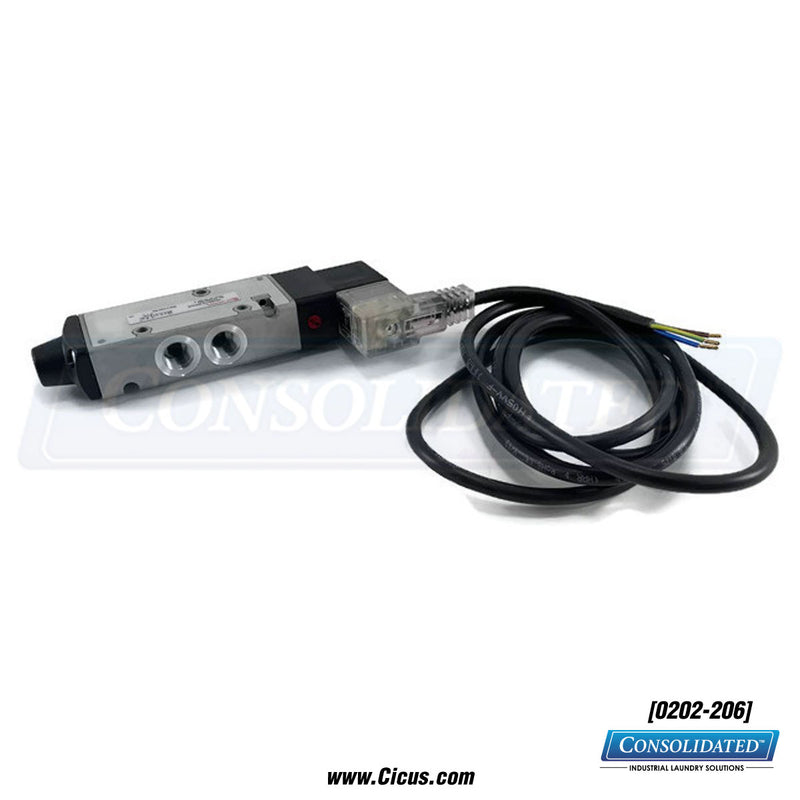

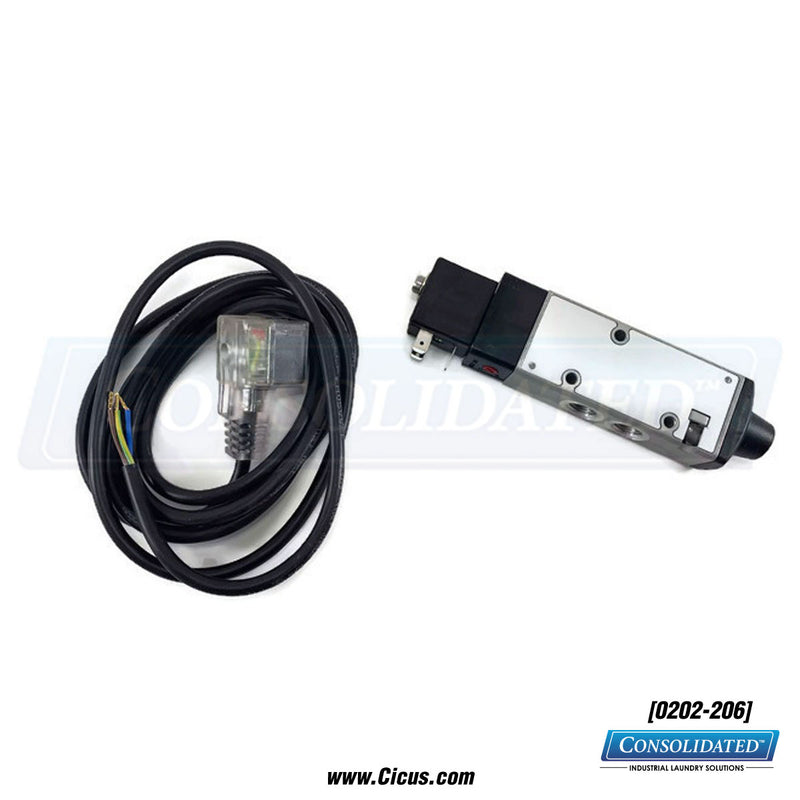

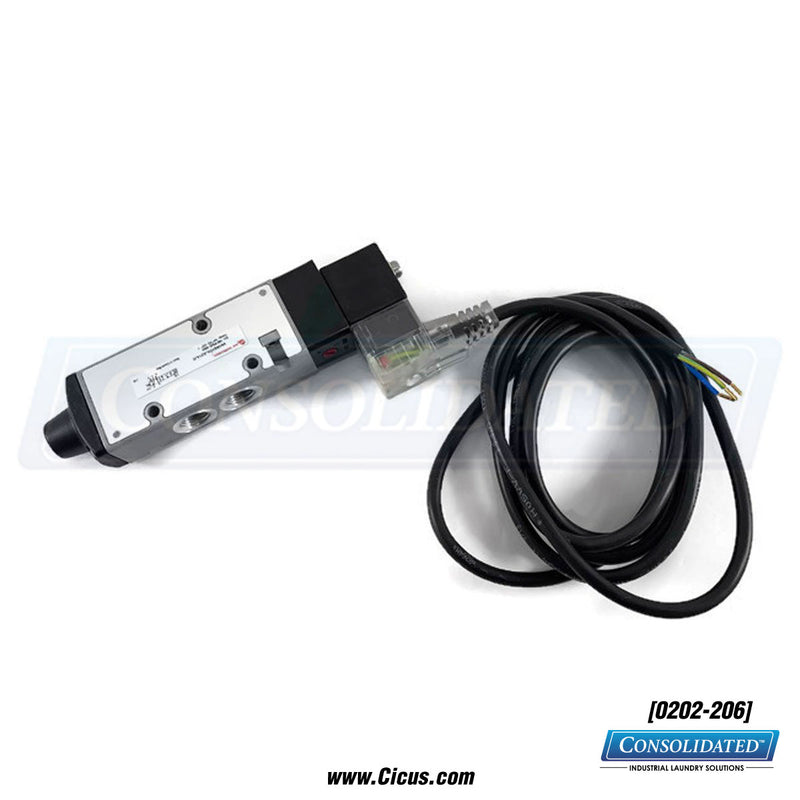

0202-206 – Chicago Dryer Internal Air Valve, 1/4″ NPT, 24 VAC, 4-Way

The 0202-206 Internal Air Valve is a 4-way solenoid valve used in Chicago Dryer flatwork ironer and folder pneumatic control circuits. The valve features 1/4″ NPT ports and a 24 VAC coil for directional control of double-acting air cylinders within internal machine assemblies.

This air valve is typically installed inside control cabinets or machine frames where it directs compressed air to extend and retract pneumatic actuators. Proper voltage and port sizing must match the existing air circuit to maintain correct timing and cylinder sequencing.

Maintenance Tip: Confirm coil voltage (24 VAC) at the terminal before installation to prevent coil burnout.

CICUS supplies field-matched pneumatic control components engineered for commercial flatwork systems.
